Have you ever tried to design a romantic PCB for your lover or an interesting PCB for your children or friends on special day? If you haven't already then check out this cool project from EasyEDA here.

Merry Me is a romantic LED board. It consists of 35 LEDs and a CR1220 type battery and some resistors. It does not require professional skills of circuit, as long as you can connect the LED, it is very simple and romantic.

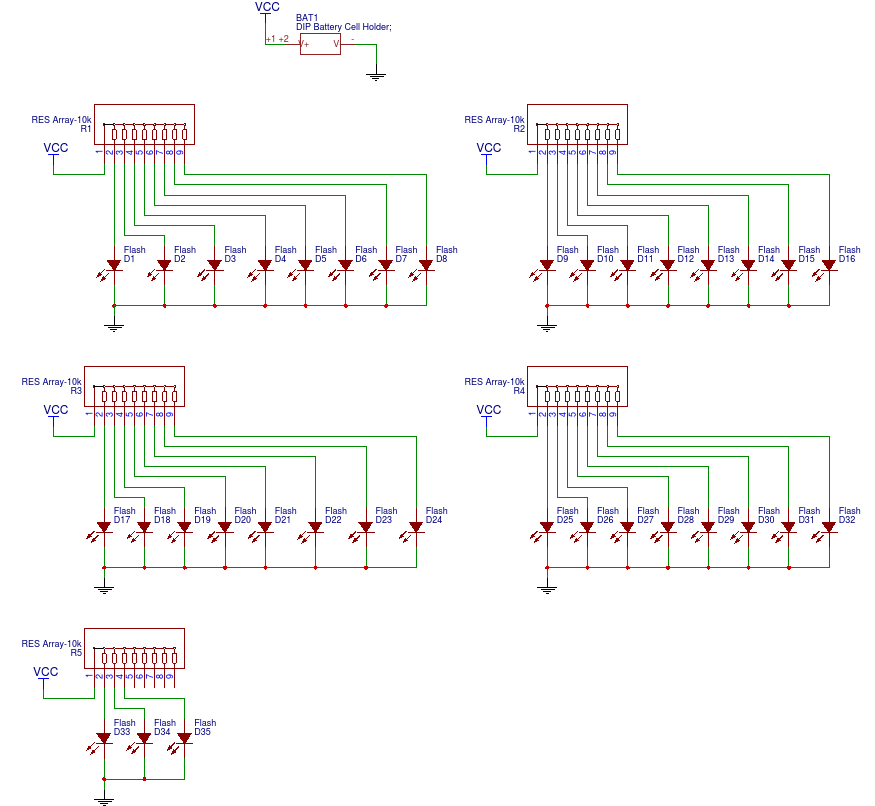

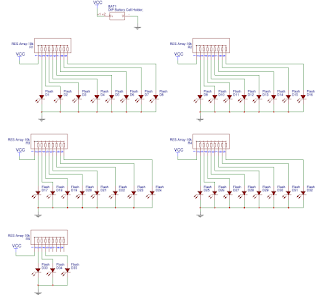

The circuit is very easy to understand and very few components are required to build this flash LED circuit. https://easyeda.com/editor#id=XVd7NHmgW

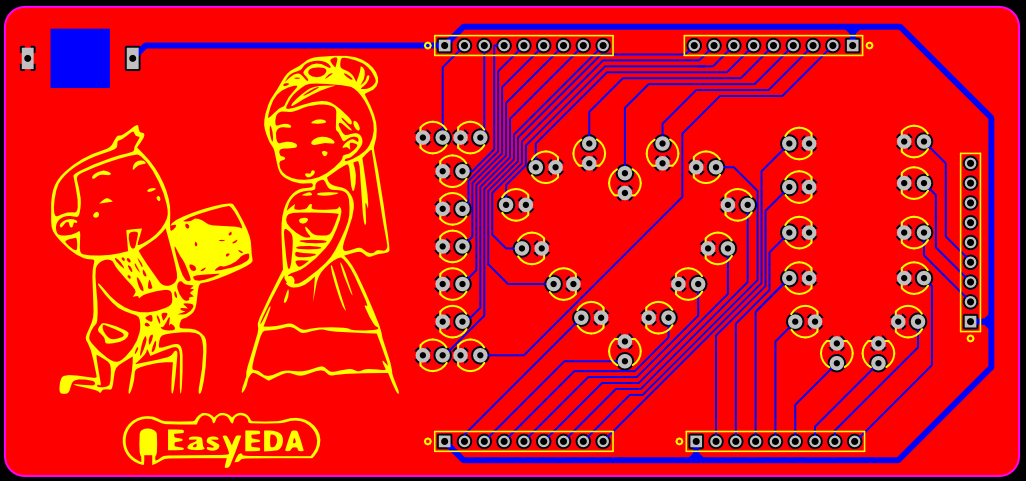

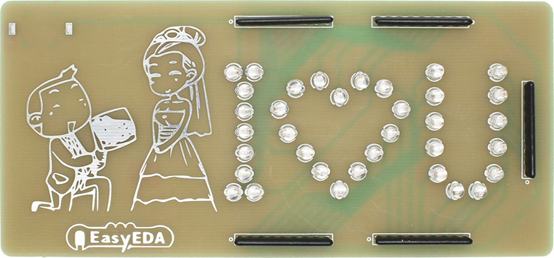

If you want to order this romantic PCB, you also could directly order it from EasyEDA. Also if you wish to replace the default picture with your favorite picture, you need to click the ‘image’ button in the PCB Tools menu on EasyEDA. You can then select an image in the new window of ‘Insert Image to PCB’,and use use the Color Tolerance or Simplify Level function to adjust your image.

After finalizing the design simply click on “Fabrication Output” button which will redirect you to “PCB order” page. In that page you can place your order quickly and easily.

Link for completed PCB design by EasyEDA: https://easyeda.com/editor#id=MOI0UcuoG
