With only one hardware PWM pin on Raspberry Pi it can be quite a problem with Arduino users like me.There are various hardware solutions available to overcome this problem.Many ADC(analog to digital converters) IC are available which can be interfaced via I2C bus.In this post I will be using WiringPi library which can bit-bang any GPIO pins and generate PWM signal. Even though the PWM signals are generated by individual threads with high priority using a real-time scheduler, there may be instances where it may get  temporarily descheduled for a fraction of a second and cause jitters.

Installing the Library:-
WiringPi is maintained under GIT for ease of change tracking.If you do not have GIT installed, then under any of the Debian releases, you can install it with-
sudo apt-get install git-core

To obtain WiringPi using GIT:
git clone git://git.drogon.net/wiringPi

If you have already used the clone operation for the first time, then

cd wiringPi
git pull origin
Will fetch an updated version then you can re-run the build script below.

To build/install there is a new simplified script:
cd wiringPi
./build

The new build script will compile and install it all for you - it does use the sudo command at one point, so you may wish to inspect the script before running it.

Example Code:-
This code uses both the hardware and software PWM functions.

//////---------------------------------------------------------------------------
////// Name:                   pwm.c
////// Compiled with:      gcc pwm.c -I/usr/local/include -L/usr/local/lib -lwiringPi -lpthread -o pwm
////// Schematic:              .------.
//////                         | o  o |
//////                     RPi | o  o |12
//////                         | o  o-|-----(->|)-----\/\/\/\--o GND
//////                         | o  o |11    LED1       220
//////                         | o  o-|-----(->|)-----\/\/\/\--o GND
//////                         | o  o |      LED2       220
//////                         | o  o-|
//////
////// Notes:
//////---------------------------------------------------------------------------
#include <stdio.h>
#include <stdlib.h>
#include <signal.h>
#include <wiringPi.h>
#include <softPwm.h>
void control_event(int sig);
int HARD_PWM_PIN=1; //Hardware PWM Pin(GPIO18-12)
int SOFT_PWM_PIN=0; //Software PWM Pin(GPIO0-11)
int DELAY_MS=10;
int main(void)
{
  (void)signal(SIGINT,control_event);
  (void)signal (SIGQUIT,control_event);
  printf("Hardware and software based PWM test on LED\n");
  if(getuid()!=0) //wiringPi requires root privileges
  {
    printf("Error:wiringPi must be run as root.\n");
    return 1;
  }
  if(wiringPiSetup()==-1)
  {
    printf("Error:wiringPi setup failed.\n");
    return 1;
  }
  pinMode(HARD_PWM_PIN,PWM_OUTPUT); //setup hardware pwm
  softPwmCreate(SOFT_PWM_PIN,0,100); //setup software pwm pin
  int up;
  int down;
  while(1)
  {
    for(up=1;up=5;down--)
    {
      pwmWrite(HARD_PWM_PIN,down);
      softPwmWrite(SOFT_PWM_PIN,down);
      delay(DELAY_MS*2);
    }
    delay(DELAY_MS*5);
  }
}
void control_event(int sig)
{
  printf("\b\bExiting...\n");
  pwmWrite(HARD_PWM_PIN,0);
  softPwmWrite(SOFT_PWM_PIN,0);
  delay(100); //wait a little for the pwm to finish write
  exit(0);
}

Limitations:- To minimize CPU usage the minimum default pulse width is set to 100μs thereby generating a PWM of 100 Hz. Lowering the range can give you a higher frequency at an expense of resolution and vice versa. Delays less than 100μs will dramatically increase the CPU usage and controlling other pins would be impossible.However, within these limitations controlling an LED or Motor is quite practical.

In this tutorial, I will demonstrate how to use the pi with remote GUI. It involves the following steps given below:-

1. Install VNC server on pi:

$ sudo apt-get install tightvncserver


2. Setup VNC client on remote system:

$ sudo apt-get install xtightvncviewer

3. Start VNC server on pi:

$ /user/bin/tightvncserver

4. Open VNC viewer on remote system:

$ xvncviewer 192.168.1.5:1





5. Kill VNC server

$ vncserver -kill :1





Download notes

In this tutorial, I will demonstrate the following:-



1. Login through ssh
2. Changing pi's password
3. Navigating  through file-system
4. Copying files on network
5. Shutdown, Reboot pi
6. Writing, compiling a C program










Download Notes

Pi normally needs hardware support like keyboard, mouse, display( HDMI compatible monitors). But we can run pi without these hardware too, using another PC by SSH tunneling. Before getting started, we need to install ssh client in the system from which we are tunneling in to the pi. In Ubuntu (or other linux distros), we install ssh client as follows:

$ sudo apt-get install ssh
$ sudo apt-get install openssh-client

Default login for pi running Wheezy:

usrname: pi
passwd: raspberry

Follow the video below which explains what is SSH and how to log in to pi by SSH tunneling step by step:





Dowload notes/hints

One of the few things that separates the Pi from other SBC (Single Board Computer)  is the ability to use the GPIO (General Purpose Input/Output) pins which can be set as HIGH or LOW to control any external devices. All you need is a female to male jumper wire to get started. Here I have used a HDD IDE connector to get the job done.

In this post pin 9 is used for GND and pin 11 for GPIO17. The LED was connected using a 470 ohm register in series with pin 9 and 11 to limit the current.

Software Implementation:-

The fastest way to get started is to use python which comes pre-installed with all images. Download the RPi.GPIO library and copy the gz tar ball to the RPi wheezy raspbian. Open the terminal and navigate to the extracted folder containing the RPi.GPIO library. Then type:  $ sudo python setup.py install to install the module. Imp: As the OS is multitasking  and not Real-time unlike Arduino there may be jitters depending on CPU priority.

Based on the library I have written a simple code to turn ON and turn OFF the LED after a delay of 1 sec (1000ms) each.The LED blinks 50 times.

import RPi.GPIO as GPIO
import time
# blinking function
def blink(pin):
        GPIO.output(pin,GPIO.HIGH)
        time.sleep(1)
        GPIO.output(pin,GPIO.LOW)
        time.sleep(1)
        return
# to use Raspberry Pi board pin numbers
GPIO.setmode(GPIO.BOARD)
# set up GPIO output channel
GPIO.setup(11, GPIO.OUT)
# blink GPIO17 50 times
for i in range(0,50):
        blink(11)
GPIO.cleanup()



Follow the steps below to pair your Raspberry Pi with your smartphone:-

1. Load a new wheezy raspbian image on SD card via the MAC, from a terminal window enter:
sudo umount /dev/disk1s1
sudo dd bs=1m if=2012-09-18-wheezy-raspbian.img of=/dev/rdisk1
sudo umount /dev/disk1s1
2. Boot Raspbian, perform the initial configuration and increase the size of SD to maximum (4GB), & Reboot.
3. Perform a ssh login to Raspbian from MAC, username pi pw raspberry and enter commands:
su
(enter root password)
apt-get update
apt-get install -y bluetooth bluez-utils blueman
lsusb
/etc/init.d/bluetooth status
4. Enable tightvncserver  and remote connect to Raspbian to see its GUI.
5. From Raspbian's GUI select Preferences->Bluetooth Manager, a Bluetooth Devices window will pop up.
Click 'Search' on the Bluetooth Devices, go to the phone, turn on Bluetooth and enable discovery.
6. When Raspberry Pi detects the smartphone, click + on the Bluetooth Devices window. Click Setup, specify password 0000 on the Bluetooth Assistant window.
7. On the smartphone, enter 0000 to pair with Raspberry Pi, the phone should display "raspberry3-14" as a paired device.


















The Raspberry Pi Bluetooth name can be changed using : Adapter->Preferences and change the Friendly Name.

I wanted to find out if the Raspberry Pi supports webcam or not. So I pulled an old Microsoft LifeCam NX-3000 to test with the Pi.The packages were talking a long time to load so I had to perform most of my installation on the emulator instead.

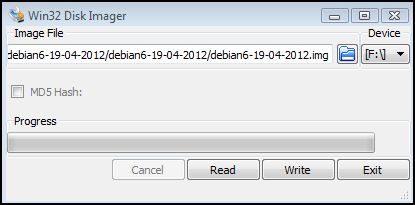

Since my MAC has single hard disk drive, the USB drive for the SD card would always be on /dev/disk1s1 when plugged in. To overcome the problem I created a shell script to write any Raspberry Pi  images on the SD card.

#!/bin/bash
sudo diskutil umount /dev/disk1s1
sudo dd bs=1m if=$1 of=/dev/rdisk1
sudo diskutil umount /dev/disk1s1

Through Qemu you can quickly install debian packages on SD card.The image can be loaded on the SD card using the script above.Follow the steps below to test webcam packages on the Raspberry Pi:

1. Remotely access your Linux box using ssh, then mount the folder containing wheezy raspbian image.
2. Create a raw 3GB raw image disk and copy wheezy raspbian onto it:
qemu-img info 2012-09-18-wheezy-raspbian.img
qemu-img create -f raw newwheezy.img 3G
dd if=2012-09-18-wheezy-raspbian.img of=newwheezy.img
3. Start qemu without graphic, and specify 512MB memory (or replace the flag to -m 1024 to use 1GB memory), command:
sudo qemu-system-arm -kernel kernel-qemu -cpu arm1176 -M versatilepb -m 512 -no-reboot -append "root=/dev/sda2" -hda newwheezy.img -net nic -net user -nographic
4. Within qemu emulating Raspbian:
sudo passwd root
(enter new root password: root, twice)
su
(enter root)
aptitude update
aptitude install -y camorama
aptitude show camorama (to make sure it's installed).
shutdown -h now
(enter Ctrl-a x to exit qemu, then quit ssh session to go back to the MAC).
5. From the MAC, use sftp or scp to copy the new wheezy raspbian image loaded with camorama, command:
./loadsd.sh newwheezy.img
6. Now boot your Raspberry Pi with new wheezy raspbian. Enter command: startx to start the GUI & click LXTerminal, enter:
lsub (a list of USB devices is displayed, one of those lines listed the LifeCam)
camorama (command to start camorama, or command cheese to start cheese)

Hitachi HD44780 based 16x2 character LCD are very cheap and widely available, and is a essential part for any  projects that displays information. Using the I2C bus on Raspberry Pi ,PCF8574 IC, and Python characters/strings can be displayed on the LCD. The PCF8574 is an general purpose bidirectional 8 bit I/O port expander that uses the I2C protocol.



The LCD(HD44780) is connected in 4 bit mode as follows to the PCF8574:-


              P0 - D4
              P1 - D5
              P2 - D6
              P3 - D7
              P4 - RS
              P5 - R/W
              P6 - E

Port A0 is connected to VCC(5V) with a 10k resistor so that it will be addressed at 0x21.

import smbus
from time import *
# General i2c device class so that other devices can be added easily
class i2c_device:
 def __init__(self, addr, port):
  self.addr = addr
  self.bus = smbus.SMBus(port)
 def write(self, byte):
  self.bus.write_byte(self.addr, byte)
 def read(self):
  return self.bus.read_byte(self.addr)
 def read_nbytes_data(self, data, n): # For sequential reads > 1 byte
  return self.bus.read_i2c_block_data(self.addr, data, n)
class lcd:
 #initializes objects and lcd
 '''
 Reverse Codes:
 0: lower 4 bits of expander are commands bits
 1: top 4 bits of expander are commands bits AND P0-4 P1-5 P2-6
 2: top 4 bits of expander are commands bits AND P0-6 P1-5 P2-4
 '''
 def __init__(self, addr, port, reverse=0):
  self.reverse = reverse
  self.lcd_device = i2c_device(addr, port)
  if self.reverse:
   self.lcd_device.write(0x30)
   self.lcd_strobe()
   sleep(0.0005)
   self.lcd_strobe()
   sleep(0.0005)
   self.lcd_strobe()
   sleep(0.0005)
   self.lcd_device.write(0x20)
   self.lcd_strobe()
   sleep(0.0005)
  else:
   self.lcd_device.write(0x03)
   self.lcd_strobe()
   sleep(0.0005)
   self.lcd_strobe()
   sleep(0.0005)
   self.lcd_strobe()
   sleep(0.0005)
   self.lcd_device.write(0x02)
   self.lcd_strobe()
   sleep(0.0005)
  self.lcd_write(0x28)
  self.lcd_write(0x08)
  self.lcd_write(0x01)
  self.lcd_write(0x06)
  self.lcd_write(0x0C)
  self.lcd_write(0x0F)
 # clocks EN to latch command
 def lcd_strobe(self):
  if self.reverse == 1:
   self.lcd_device.write((self.lcd_device.read() | 0x04))
   self.lcd_device.write((self.lcd_device.read() & 0xFB))
  if self.reverse == 2:
   self.lcd_device.write((self.lcd_device.read() | 0x01))
   self.lcd_device.write((self.lcd_device.read() & 0xFE))
  else:
   self.lcd_device.write((self.lcd_device.read() | 0x10))
   self.lcd_device.write((self.lcd_device.read() & 0xEF))
 # write a command to lcd
 def lcd_write(self, cmd):
  if self.reverse:
   self.lcd_device.write((cmd >> 4)<<4)
   self.lcd_strobe()
   self.lcd_device.write((cmd & 0x0F)<<4)
   self.lcd_strobe()
   self.lcd_device.write(0x0)
  else:
   self.lcd_device.write((cmd >> 4))
   self.lcd_strobe()
   self.lcd_device.write((cmd & 0x0F))
   self.lcd_strobe()
   self.lcd_device.write(0x0)
 # write a character to lcd (or character rom)
 def lcd_write_char(self, charvalue):
  if self.reverse == 1:
   self.lcd_device.write((0x01 | (charvalue >> 4)<<4))
   self.lcd_strobe()
   self.lcd_device.write((0x01 | (charvalue & 0x0F)<<4))
   self.lcd_strobe()
   self.lcd_device.write(0x0)
  if self.reverse == 2:
   self.lcd_device.write((0x04 | (charvalue >> 4)<<4))
   self.lcd_strobe()
   self.lcd_device.write((0x04 | (charvalue & 0x0F)<<4))
   self.lcd_strobe()
   self.lcd_device.write(0x0)
  else:
   self.lcd_device.write((0x40 | (charvalue >> 4)))
   self.lcd_strobe()
   self.lcd_device.write((0x40 | (charvalue & 0x0F)))
   self.lcd_strobe()
   self.lcd_device.write(0x0)
 # put char function
 def lcd_putc(self, char):
  self.lcd_write_char(ord(char))
 # put string function
 def lcd_puts(self, string, line):
  if line == 1:
   self.lcd_write(0x80)
  if line == 2:
   self.lcd_write(0xC0)
  if line == 3:
   self.lcd_write(0x94)
  if line == 4:
   self.lcd_write(0xD4)
  for char in string:
   self.lcd_putc(char)
 # clear lcd and set to home
 def lcd_clear(self):
  self.lcd_write(0x1)
  self.lcd_write(0x2)
 # add custom characters (0 - 7)
 def lcd_load_custon_chars(self, fontdata):
  self.lcd_device.bus.write(0x40);
  for char in fontdata:
   for line in char:
    self.lcd_write_char(line)

Main Program:-

import pylcdlib
lcd = pylcdlib.lcd(0x21,0)
lcd.lcd_puts("Raspberry Pi",1)  #display "Raspberry Pi" on line 1
lcd.lcd_puts("  Take a byte!",2)  #display "Take a byte!" on line 2

 Save the above code as test_lcd.py and enter sudo python test_lcd.py
My code assumes that the first 4 bits of the LCD(11,12,13,14) are connected to P0,P1,P2,P3 ports on PCF8574. The next 3 ports on PCF8574(P4,P5,P6) should be connected to 4-RS, 5-R/W, 6-E.However there are other serial backpack lcd's with different pinouts. According to the wiring of your serial backpack LCD you can override the default mapping during initialization.There are 3 modes available-
lcd = pylcdlib.lcd(0x21,0)   lower 4 bits of expander are commands bits
lcd = pylcdlib.lcd(0x21,0,1)   top 4 bits of expander are commands bits AND   P0-4   P1-5   P2-6
lcd = pylcdlib.lcd(0x21,0,2)   top 4 bits of expander are commands bits AND   P0-6   P1-5   P2-4

(Update):- If you have a Raspberry Pi with a revision 2.0 board, you need to use I²C bus 1, not bus 0, so you will need to change the bus number used. In this case, the line lcd = pylcdlib.lcd(0x21,0) would become lcd = pylcdlib.lcd(0x21,1).

You can check that the device is present on the bus by using the i2cdetect program from the i2ctools package-
i2cdetect 0 -y  or i2cdetect 1 -y

Well the most easiest way to shut down any computer is by pulling the plug or to switch it off directly. As with most of the PCs they can be switched off forcibly even when the system has crashed by holding the power switch for 3 secs. But this method isn't quite healthy for your system as it can damage the HDD or BIOS. For the Raspberry Pi, it can cause problems or corrupt the SD card.

So now let’s talk about how to shut down your Raspberry Pi when it hasn't frozen.

sudo shutdown -h now (or sudo halt)  [-h means halt the system] [now means to shutdown immediately]

You can also use the shorthand's:- `halt` and `reboot`.
